Teaching the energy unit in high school physics can feel like a breath of fresh air after the heavy vector math of forces and kinematics. Energy is a scalar, which means no more breaking things into x and y components! But it also comes with its own set of challenges. Students often struggle to connect the abstract concept of "work" to the very real phenomena of kinetic and potential energy, and keeping track of energy transformations can get messy fast.
If you're looking for ways to make your energy unit more engaging, hands-on, and conceptually clear, you're in the right place. Let's break down how to teach work, power, and the conservation of energy in a way that actually sticks.
Start with the Basics: What Is Work in Physics?
Before students can understand energy conservation, they need to understand how energy enters or leaves a system. That's where work comes in. The classic definition — W = Fd (work equals force times displacement) — is simple enough, but students often forget that the force and displacement must be in the same direction (parallel) for work to be done.
Teaching Tip: Have students do physical "work" in the classroom. Have them push a heavy box across the floor, then have them carry that same box across the room at a constant height. Ask them: In which scenario did you do work on the box? It's a great way to illustrate that carrying an object horizontally does zero net work on it, because the upward force is perpendicular to the horizontal motion (W = Fd·cos90° = 0).
To reinforce these concepts with structured practice, the Physics Work and Energy Assignment ($2.50) provides excellent NGSS-aligned practice problems that challenge students to identify when work is actually being done — and when it isn't.
Making Kinetic and Potential Energy Concrete
Once students understand work, it's time to introduce the two forms of mechanical energy: Kinetic Energy (KE = ½mv²) and Gravitational Potential Energy (PE = mgh).
The biggest conceptual hurdle here is the velocity-squared term in the kinetic energy equation. Students often don't realize that doubling the speed quadruples the kinetic energy. This is a powerful moment to drive home the non-linear nature of the relationship. If a car doubles its speed from 30 mph to 60 mph, it doesn't just take twice as long to stop — it takes four times the stopping distance.

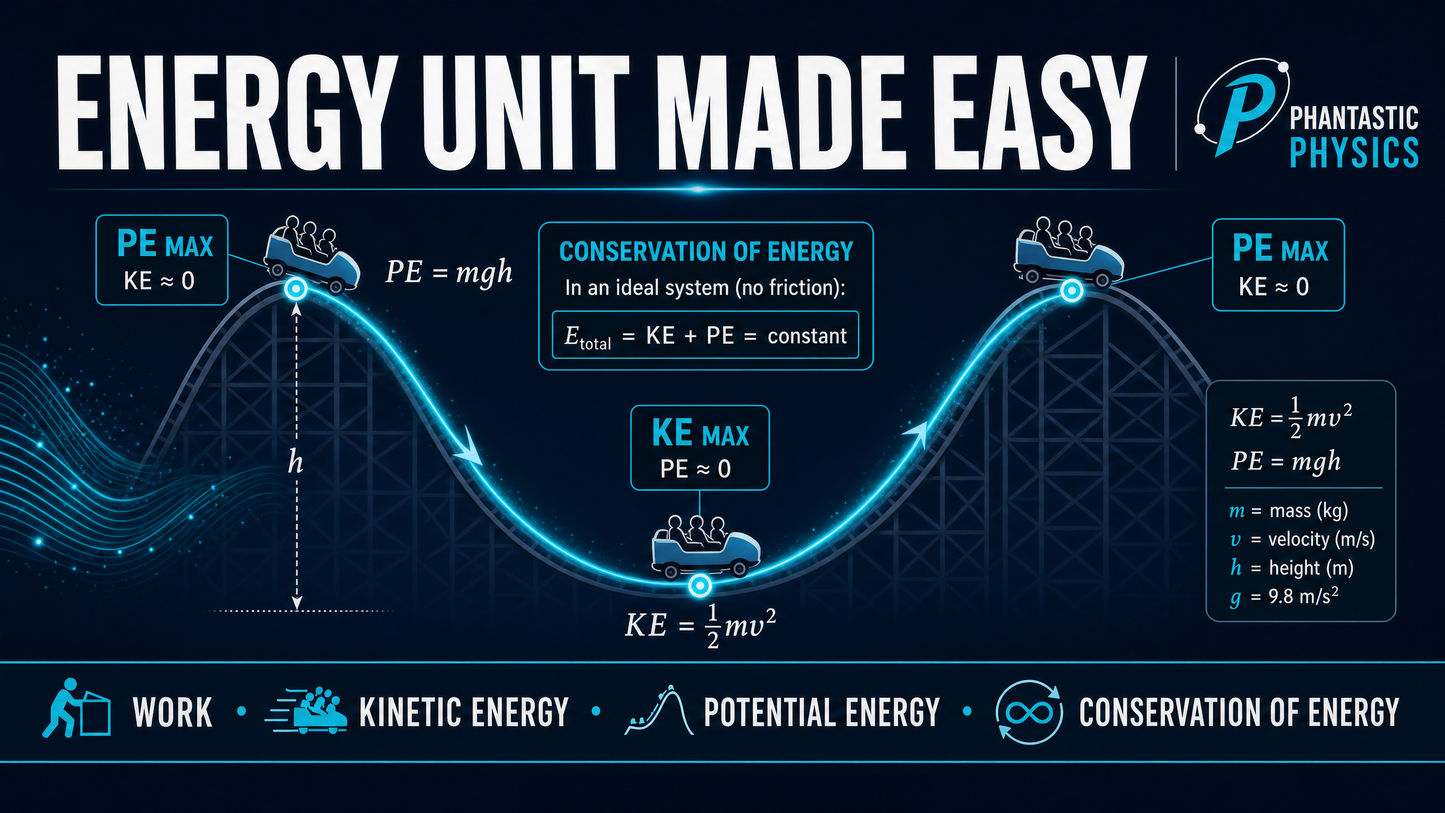

Teaching Tip: Use a roller coaster as your conceptual anchor. At the top of the hill, the car has maximum PE and minimum KE. At the bottom, all that PE has converted to KE. Draw energy bar charts (sometimes called LOL diagrams) to make the transformation visual. Students who draw these diagrams consistently make far fewer errors on energy conservation problems.
For a hands-on exploration of these concepts, the Physics Energy Warm-Ups ($4.50) are perfect for getting students thinking about KE and PE right from the bell. These quick daily questions build conceptual fluency before you even start the main lesson.
The Ballistic Pendulum: Where Momentum Meets Energy
One of the most powerful demonstrations in the energy unit is the ballistic pendulum — a classic experiment that bridges conservation of momentum (from Unit 3) with conservation of energy. A projectile embeds itself in a pendulum, and students use the height the pendulum rises to calculate the initial velocity of the projectile.
The two-step process is elegant:
- Step 1 (Momentum): Use conservation of momentum during the collision: m₁v₁ = (m₁ + m₂)v₂
- Step 2 (Energy): Use conservation of energy as the pendulum rises: ½(m₁+m₂)v₂² = (m₁+m₂)gh
This is a fantastic way to show students that physics concepts don't exist in isolation — they build on each other. The Physics Ballistic Pendulum Assignment ($2.50) walks students through this exact analysis with scaffolded problem sets.
The Main Event: Conservation of Energy
The Law of Conservation of Energy is the crown jewel of this unit. The principle that KEi + PEi = KEf + PEf (in an isolated, frictionless system) is incredibly powerful. It allows students to solve complex motion problems without ever needing to calculate acceleration or use kinematic equations.
However, students often struggle to set up the initial and final states correctly. They forget to account for all forms of energy, or they mix up which height to use for PE.
Teaching Tip: Teach students a consistent problem-solving framework:
- Draw a diagram and label the initial and final positions clearly.
- Write out the full energy equation: KEi + PEi = KEf + PEf
- Substitute what you know (v=0 at rest, h=0 at the reference level).
- Solve for the unknown.
For a hands-on approach, the Physics: Conservation of Energy Exploration Activity ($2.50) is a must-have. It guides students through real-world scenarios where energy transforms from one type to another, building the intuition they need before tackling complex problems.
Gamify Your Energy Review with an Escape Room
When it's time to review for the unit test, ditch the boring study guides. Gamification is one of the most effective ways to get high schoolers invested in their own learning — especially when the "game" is actually rigorous physics practice in disguise.
The Physics Energy Escape Room: The Energy Heist ($9.99) is an absolute game-changer. Students work in teams to solve energy conservation puzzles, calculate work and power, and analyze kinetic/potential energy transformations to "crack the safe." It's fully NGSS-aligned, includes answer keys, and requires zero setup beyond printing.
Students who complete the escape room consistently perform better on the unit test because they've had to apply the concepts in a novel, problem-solving context — exactly the kind of higher-order thinking that NGSS demands.
Save Time with the Complete Energy Unit Bundle
If you want to save hours of planning and get everything you need for the entire unit in one place, the Physics Energy Unit Bundle ($52.50) has you covered. It includes:
- All slide decks (Work & Energy, Potential Energy, Kinetic & Thermal Energy, Conservation of Energy, Velocity Equation, Ballistic Pendulum)
- All assignments with answer keys
- Energy warm-ups
- Two quizzes
- The Energy Heist escape room
- The unit test
That's a complete, ready-to-go energy unit for $52.50 — less than the cost of a single textbook chapter supplement at most curriculum publishers.
Wrapping Up: Making Energy Click
The energy unit doesn't have to be a grind. By anchoring your instruction in real-world contexts (roller coasters, ballistic pendulums, pushing boxes), using visual tools like energy bar charts, and incorporating engaging activities like escape rooms, you can make work and energy one of the most enjoyable units of the year.
The key is to help students see energy not as an abstract number to calculate, but as something that is constantly transforming all around them — from the food they eat, to the car they ride in, to the roller coaster they'll never look at the same way again.
Browse the full Unit 6 Energy collection to find all the resources you need for a complete, NGSS-aligned energy unit.
